Arka

Safety and fun

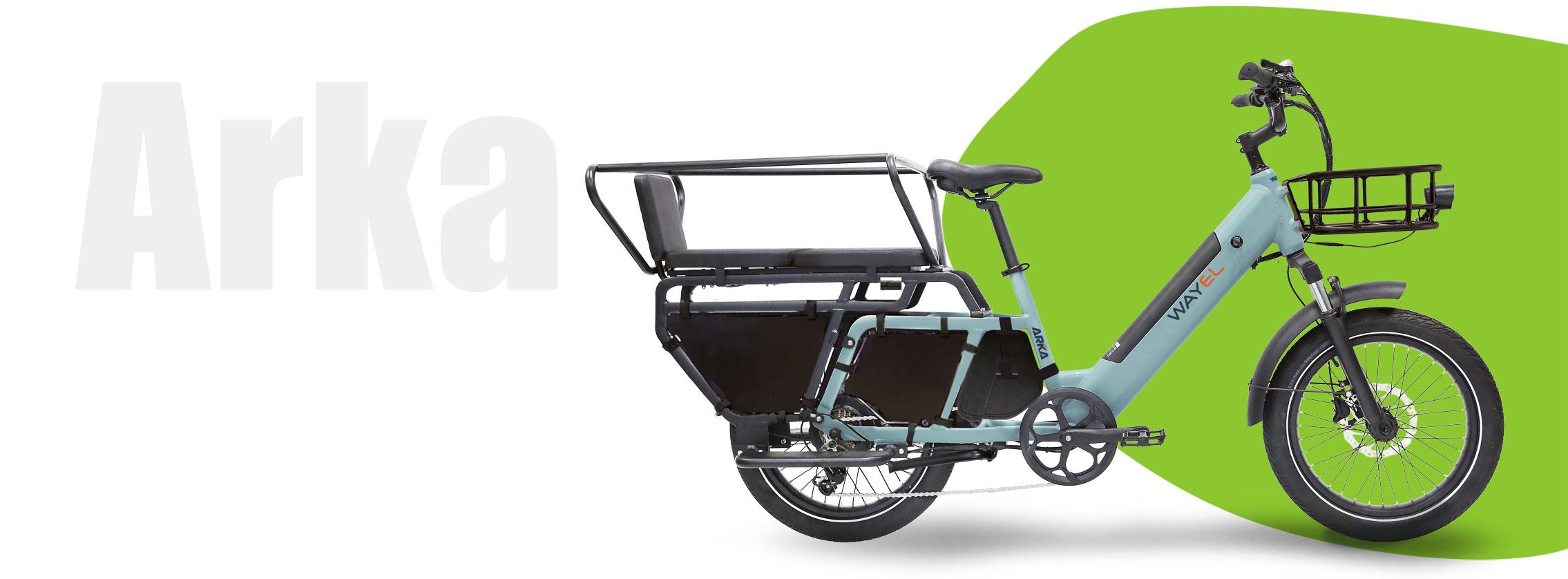

arka cargo bike

Arka

The fun and safe way to take your children around

The fun and safe way to take your children around

Designed to make everyday family mobility easier, this cargo bike turns daily urban trips—such as the school run—into a comfortable and enjoyable experience.
The Bafang H550 48V rear motor, featuring a torque sensor that provides instant responsiveness even when climbing and under full load, ensures a smooth and powerful ride. Furthermore, braking is reliable thanks to the Shimano MT-200 brakes. The spacious front basket, large rear rack with side protection, and practical storage bag provide ample room for children, school bags and groceries.

Available colors

Technical features

Transmission

Chain KMC

Extralong Battery

720 Wh | 48 V - 15 Ah | 4 kg | 6 h

Max autonomy

100 km

Frame (HxL)

Aluminium 41x63 cm

Wheels

20'' x 3'' puncture-proof Kenda

Motor torque

Rear Bafang H550 250W 60Nm 48V

Brakes

Disc 180 mm Shimano MT-200

Weight (no battery)

32 kg

Front fork

Suspended and lockable

Gear

7-speed Shimano

Pedalling sensor

Bafang integrated into the bottom bracket

Saddle

Selle Royal

Lights

Display control LED

Basket

Front

Rear carrier

Side protection

Bag

Black

Display Bafang

Multifunction control unit with 1.9" backlit TFT display with 5 selectable assistance levels

App Bafang

Bluetooth connection, GPS navigation, bike parameter customization

Highlights

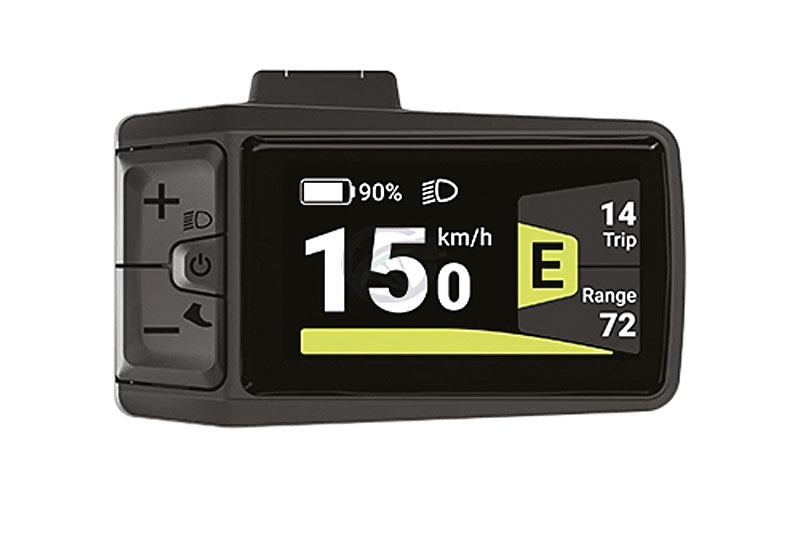

Color TFT display 1.9” Bafang

Color TFT display, equipped with Bluetooth. It has a dusk sensor that adjusts the display’s brightness based on lighting conditions.

Ananda Ride app

Allows you to connect the bike via Bluetooth to adjust motor power, monitor technical parameters (such as controller temperature and sensor data), record your activities, and track ride statistics.

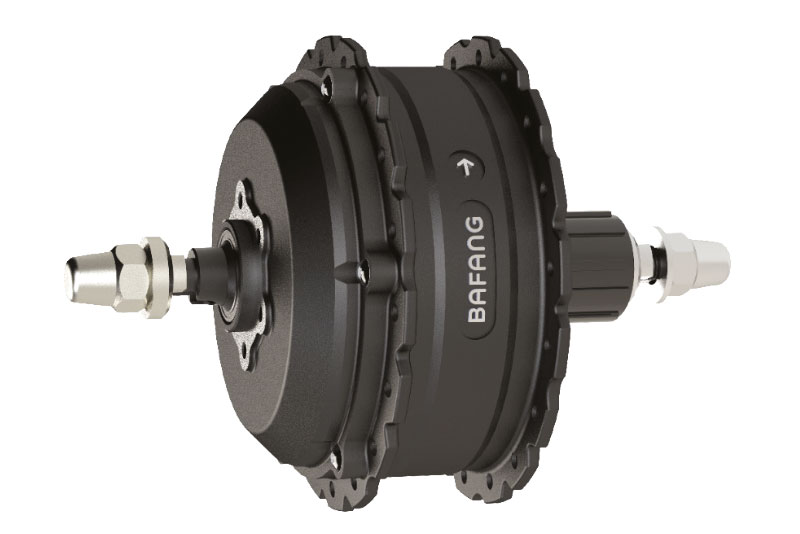

Bafang H550 rear 250W motor, 60NM and 48V

60 Nm torque rear-mounted motor, perfect for Fat Bikes and off-road. High-efficiency gears for greater compactness and IPX6 protection against water and dust.

arka cargo bike cestino

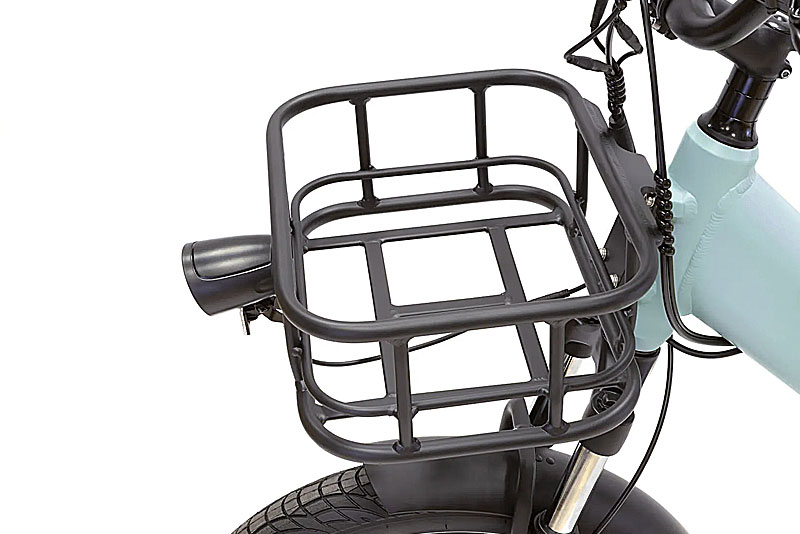

Front basket

Practical and easy to load, useful for carrying bags and backpacks.

Size guide

guida taglie
M
Frame height mm (a) 410
Top tube mm (b) 636
Head tube mm (c) 200
Head tube angle (d) 69°
Seat tube angle (e) 72.5°
Rear end mm (f) 530
Reach mm 445.8
Stack mm 603.3
Wheelbase mm (g) 1254.8
Downtube mm 411
