eBig 48V

20″ fat tyres for great offtrack fun

eBig 48V

20″ fat tyres for great offtrack fun.

Fun never ends with eBig 48V

Fun never ends with eBig 48V, the fat tires e-bike with more power thanks to the 696 Wh battery. The e-bike still preserves the agility and portability of a foldable bicycle. Maximum stability and grip on the road thanks to the innovative 4’’ knobby wide-tires DSI that ensure a perfect and comfortable use on every type of urban route. The adjustable suspension fork and the powerful rear motor give you fun and maximum road holding.

Available colors

Technical features

Size when folded

95x50x75 cm

Transmission

Chain KMC

Battery

Samsung/BAK cells 48V, FIVE

Extralong Battery

696 Wh | 48 V - 14.5 Ah | 4 kg | 6.5 h

Max autonomy

95 km

Frame (HxL)

Aluminium 42x58 cm

Wheels

20'' x 4'' wide tread tires DSI

Motor torque

Rear FIVE 250W 45Nm 48V

Brakes

Mechanical front disc brake

Weight (no battery)

26 kg

Front fork

Suspended and lockable

Gear

7-speed Shimano

Pedalling sensor

Integrated speed sensor

Saddle

Integrated light, Selle Bassano

Lights

LED front and rear battery

Display

Multifunction control unit with backlight LCD display with 5 selectable assistance levels

Highlights

DSI knobby 20″ fat tires for great offtrack fun

These exaggerated tires allow you to float and guarantee traction on literally any type of terrain, from sand, to gravel, bumpy paths and, of course, snow.

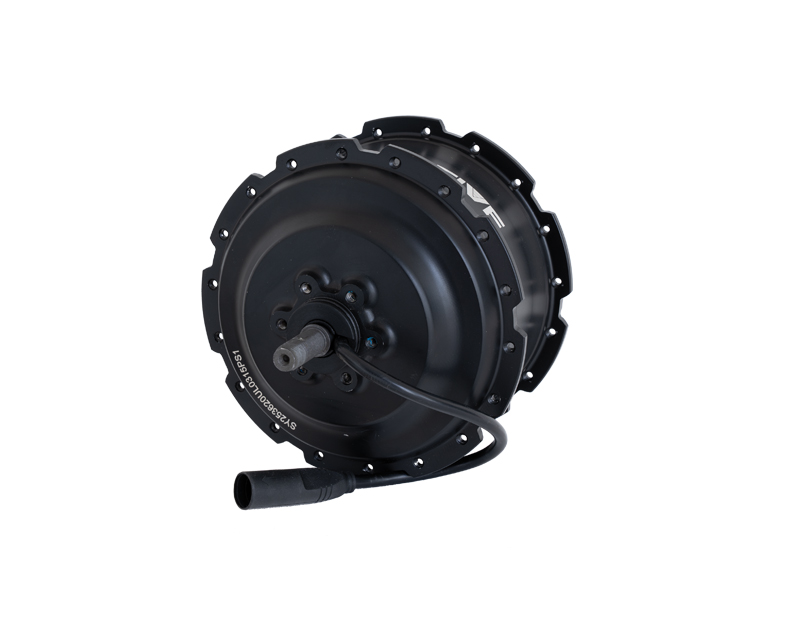

Aggressive FIVE 250W motor, 45NM and 48V

The powerful FIVE 250W rear motor represents the perfect compromise between power and handling.

Battery 48V

The 48V battery improves the efficiency of the electrical system that drives the e-bike. The FIVE battery gives the right amount of power on every route, with its 14.5Ah the capacity results in an astonishing 696Wh.

Size guide

guida taglie
M
Frame height mm (a) 420
Top tube mm (b) 584
Head tube mm (c) 130
Head tube angle (d) 71°
Seat tube angle (e) 70.2°
Rear end mm (f) 500
Reach mm 414.6
Stack mm 495.7
Wheelbase mm (g) 1119.6
Downtube mm 670
