NEXT+

Have fun and get noticed

NEXT+

Have fun and get noticed.

A top of the range e-bike

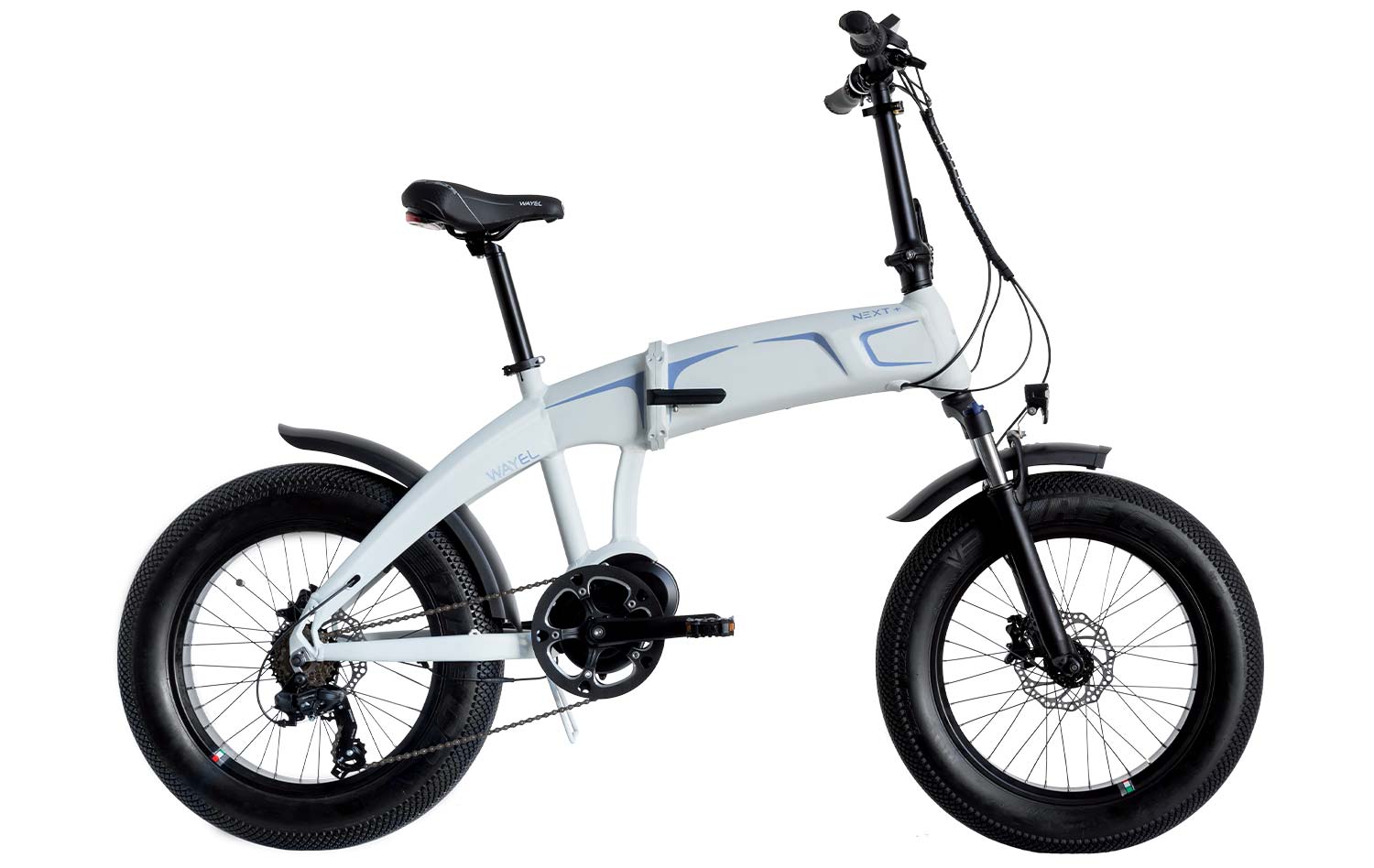

NEXT+ is the new generation of the FAT e-bikes line. Created to have fun and for the pleasure of being noticed: the frame is foldable, and the 20″ x 4″ wheels, with a wide and knobbed footprint, together with the front suspension fork, guarantee comfort and stability on urban routes. FIVE F90 48V central motor, double hydraulic disc brake, and high-quality features such as a 3.5” display, double LED lights, and ergonomic saddle for a top-of-the-range e-bike.

Available colors

Technical features

Size when folded

108x60x85 cm

Transmission

Chain KMC

Battery

Samsung/EVE cells 48V, FIVE

Long-Plus Battery

614 Wh | 48 V - 12.8 Ah | 3 kg | 7 h

Extralong Battery

672 Wh | 48 V - 14 Ah | 3 kg | 8 h

Max autonomy - Long-Plus

90 km

Max autonomy - Extralong

100 km

Frame (HxL)

Aluminium 42x64cm

Wheels

20” x 4” wide tread tyres VeeTire / Kenda

Motor torque

Central FIVE F90 250W 90Nm 48V

Brakes

Front and rear hydraulic disc brake

Weight (no battery)

26 kg

Front fork

Suspended and lockable

Gear

7-speed Shimano

Pedalling sensor

Torque sensor

Handle

Faux leather

Saddle

Integrated light, Selle Bassano

Lights

Front LED Axa, rear LED Spanninga

Display 3.5''

Multifunction control unit with backlight LCD display with 5 selectable assistance levels, USB socket

Highlights

“FAT” wheels

Thanks to 4” wide-tread section, the wheels of Next+ are comfortable, stable, and suitable for every city route.

3.5” LCD display

With backlight, the LCD display allows to turn the system on and off, to select the assistance levels, to activate the soft start and to check the battery level. The device is equipped with a USB port to charge your smartphone.

Central motor FIVE F90 48V, 250W and 90NM

FIVE F90 is the central motor for a safe and fun drive, both in the city and on trips out of town. Equipped with exceptional boost, F90 delivers power to deal with slopes up to 30%. Extremely silent, it ensures perfect symbiosis between power and pedaling.

Size guide

guida taglie
M
Frame height mm (a) 420
Top tube mm (b) 638.3
Head tube mm (c) 165
Head tube angle (d) 72°
Seat tube angle (e) 74°
Rear end mm (f) 451.2
Reach mm 489.4
Stack mm 521.1
Wheelbase mm (g) 1163.3
Downtube mm 660
